Entry # 8417: 1XNR_j3_A-U672_A-C717_A-C732

Primary Citation: (from PDB entry 1XNR)

F.V.MURPHY V.RAMAKRISHNAN STRUCTURE OF A PURINE-PURINE WOBBLE BASE PAIR IN THE DECODING CENTER OF THE RIBOSOME. NAT.STRUCT.MOL.BIOL. V. 11 1251 2004

Experimental Method: X-RAY_DIFFRACTION

Structure Images

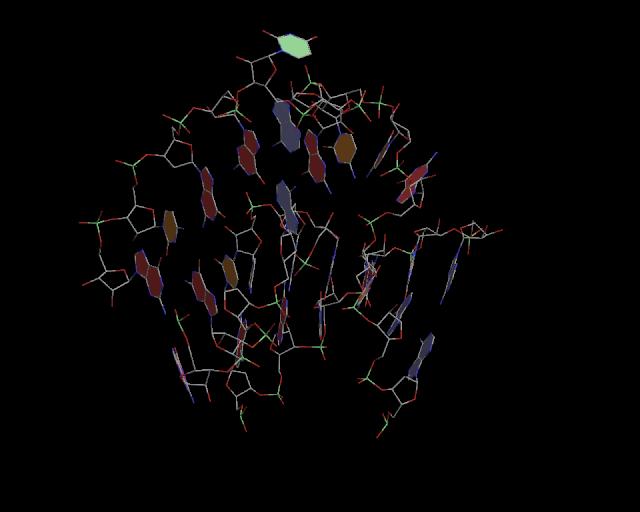

3d structure of junction secondary structure of junction

Click to launch 3D viewer Jmol | Larger 3D image | Created with Raster3D and RNAView

Derived Information
Type:3-wayCluster:1HNX j3 A-U672 A-C717 A-C732
NC-IUBMB Classification:Cluster Page
Angles: 30:158:164°
Fit Criteria: B
Extracted Structure:Download
Minimized Structure:Download RMSD = 0.72061Å

For more detailed information view the raw JunctionScanner output.

Sequence

Strand 1: Chain A: AACGCCGAUGGCG 13nt

Strand 2: Chain A: GGUGGA 6nt

Strand 3: Chain A: GGCAGCC 7nt
